Resistors and capacitors

Electronic Components

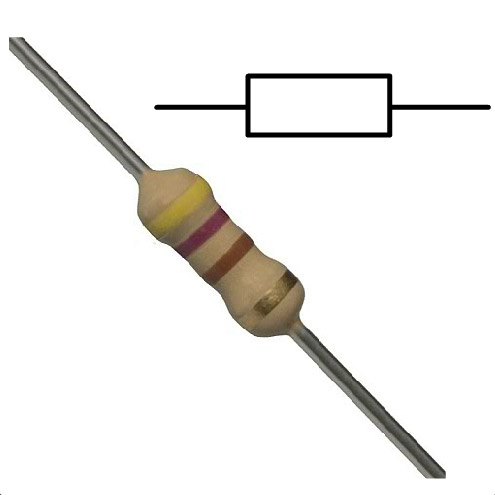

Limits the flow of current

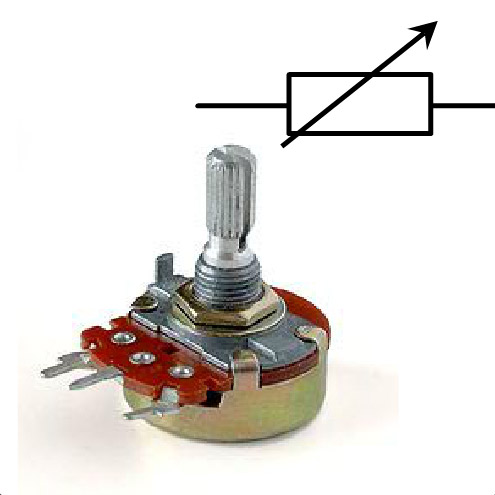

Variable resistor

Adjustable resistor

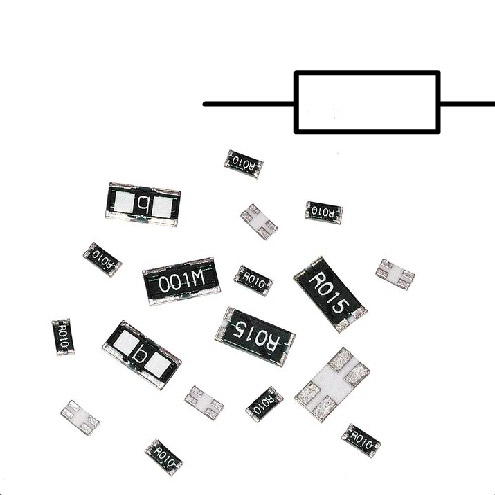

SMT resistor

Resistor that is soldered to tabs on the surface of a pcb

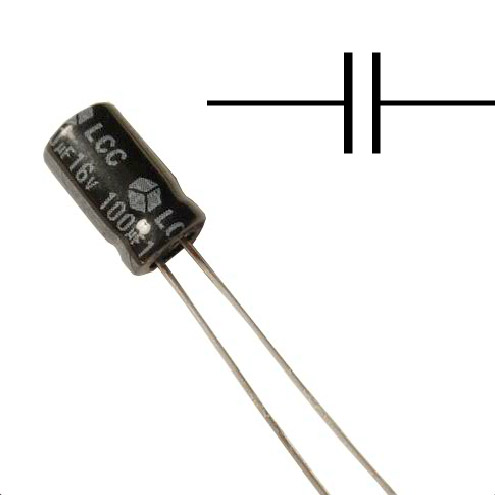

Stores charge, acts as a voltage store, used in timers

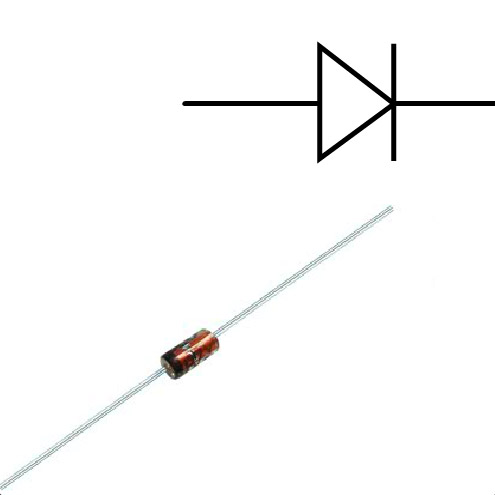

One way valve for current

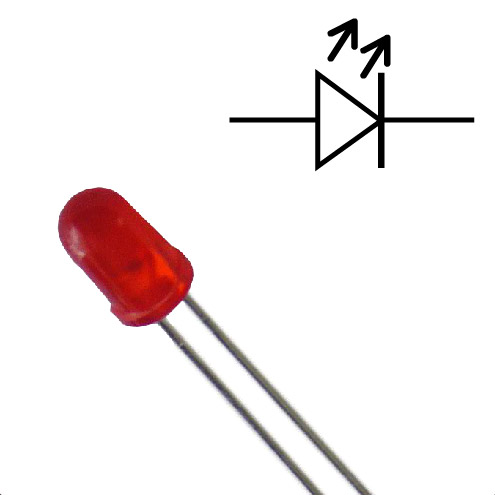

Lights when a small current flows, uses less power than a bulb

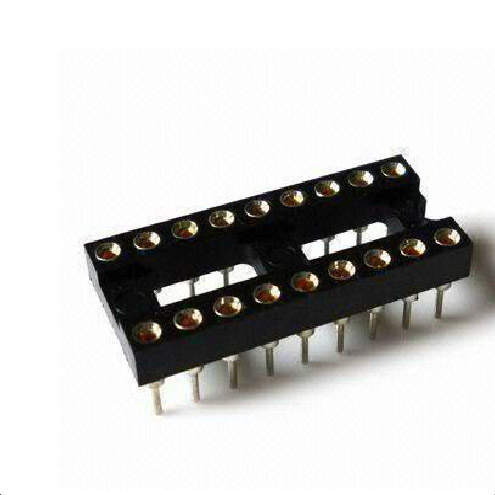

Dual in line IC

Standard chip package

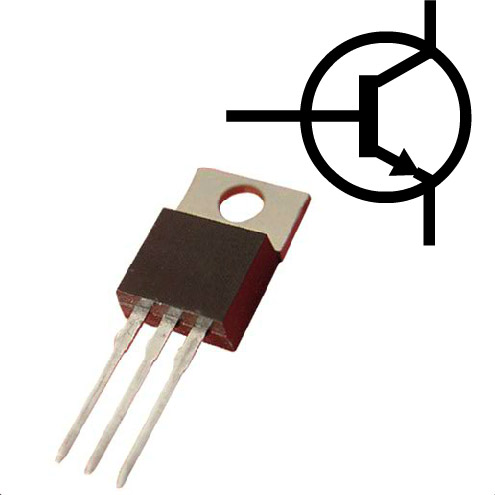

Transistor (npn only)

Used to control current – current amplifier

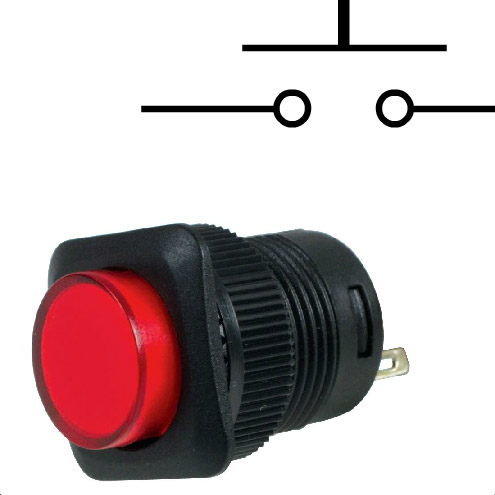

Push to make switch

Connection only when switch is pressed

Push to break

Connection only when switch is NOT pressed
